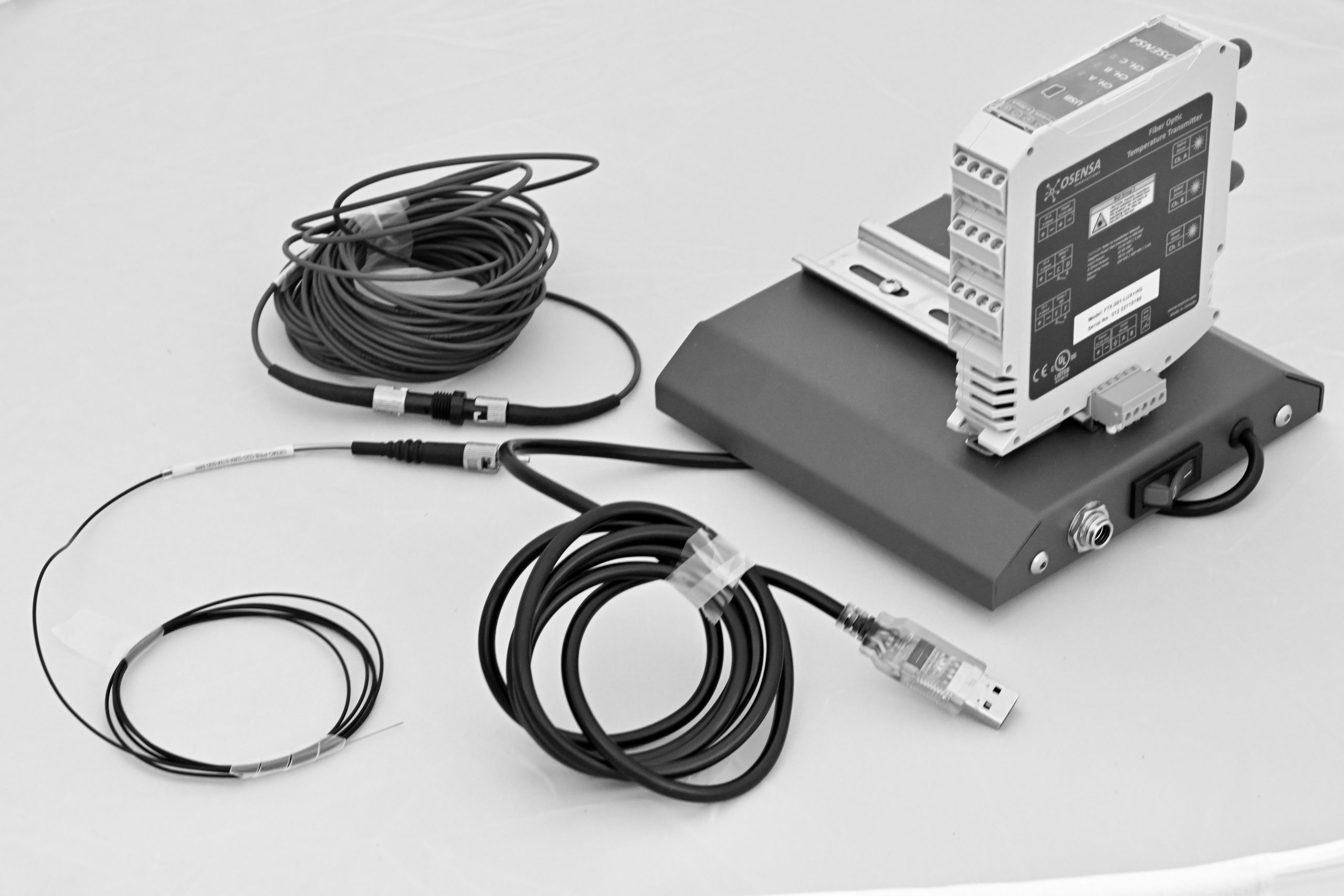

MRI Configurations
MRI Configurations by Applications - These are typical systems
The numbers in the chart represent the quantity of each line item required to complete the configuration.
| P/N | Transmitters | Description | Product Type | Temp Range | Handheld Fiber Optic Temperature Measurement System Single Channel 100 C | Medical Fiber Optic Temperature Measurement System for Animal Monitoring in MRI Single Channel 100 C Lab Grade | MRI Phantom Fiber Optic Temperature Measurement System Single Channel with Regular and Low Artifact Probe Lab Grade | Fiber Optic Temperature Measurement System for MRI Phantoms- Ultra Low Artifact Single Channel Got to more than 11T No Magnetic Temperature Shift | Fiber Optic Temperature Measurement System for MRI Implant Safety testing 3 channel Leads, Case, TSM Commercial Scanners MITS, Gradient Systems | Fiber Optic Temperature Measurement System for MRI Implant Safety testing 6 Channel Leads, Case, Device Commercial Scanners MITS, Gradient Systems | Fiber Optic Temperature Measurement System for Testing MRI Body Coils, Head Coils, Neck , Arm and Transmit coils 6 Channel | Fiber Optic Temperature Measurement System for MRI Ultra Low Field Head Coils with Connector on Head Coil 8 Channel Supports low field MRI Temperature Sensing Lab Test | Fiber Optic Temperature Testing PCB Module for Anesthesia Temperature Systems for OEM Applications Single Channel Monitoring Built into FDA approved System Sold for High Volume applications, Requires Engineering to design PCB | Fiber Optic Temperature System Vetinary or Animal Rectal Measurements with display Single Channel Rectal, Nose or Throat Probe 100 C |
| FGA-0051A | FTX-300-LUX+ | 3 Ch, USB, 4-20mA, RS-485 | Temperature Transmitter | -95 to +450°C | 1 | 2 | 2 | 2 | ||||||
| FGA-0050A | FTX-200-LUX+ | 2 Ch, USB, 4-20mA, RS-485 | Temperature Transmitter | -95 to +450°C | 1 | |||||||||
| FGA-0049A | FTX-100-LUX+ | 1 Ch, USB, 4-20mA, RS-485 | Temperature Transmitter | -95 to +450°C | 1 | 1 | 1 | |||||||
| FGA-0148B | FTX-300-LUX+HG | 3 Ch, USB, 4-20mA, RS-485 | Temperature Transmitter | -95 to +450°C | ||||||||||
| FGA-0147B | FTX-200-LUX+HG | 2 Ch, USB, 4-20mA, RS-485 | Temperature Transmitter | -95 to +450°C | ||||||||||
| FGA-0146B | FTX-100-LUX+ HG | 1 Ch, USB, 4-20mA, RS-485 | Temperature Transmitter | -95 to +450°C | ||||||||||
| FGA-0100A | HTX-100-MRI-ST(Handheld) | USB, Bluetooth, Hand Held for MRI | Handheld Temperature Transmitter | 0 to +100°C | 1 | 1 | ||||||||
| FGA-0130A | HTX-100-XFMR-ST (Handheld) | USB, Bluetooth, Hand Held for XFMR | Handheld Temperature Transmitter | -40 to +200°C | ||||||||||
| P/N | OEM 1-Channel Modules | Description | Product Type | Temp Range | ||||||||||
| FGA-0110A | FTX-020-OEM-ST-HT (Red LED, Metal ST) | 1 Ch OEM Module | OEM 1Ch Temperature Transmitter | -40 to +200°C | ||||||||||
| FGA-0228A | FTX-020-OEM-ST-MRI (Red, Non-Mag LED) | 1 Ch OEM Module | OEM 1Ch Temperature Transmitter | -40 to +200°C | 1 | |||||||||
| P/N | Probes for FTX-300/200/100-LUX+(HG) Transmitters | Tip Diameter, Material, Core | Product Type | Temp Range | ||||||||||
| FGA-0214A | PRB-140-2M-STM-MRI-50 | 0.50mm ETFE, 100µm GOF | Temperature Sensor | -40 to +100°C | ||||||||||
| FGA-0008A | PRB-G20-2M-STM-MRI-(xxx) | 0.30mm Polyimide, 200µm GOF | Temperature Sensor | -40 to +100°C | ||||||||||
| FGA-0213B | PRB-242-2M-STM-MRI (-CRYO +$100) | 0.50mm ETFE, 200µm GOF | Temperature Sensor | -40 to +150°C | 1 | 1 | 3 | 5 | ||||||
| FGA-0009A | PRB-G40-2M-STM-MRI | 0.75mm Polyimide, 400µm GOF | Temperature Sensor | -40 to +100°C | ||||||||||
| FGA-0197B | PRB-420-2M-STM-RED (End Point Sensor) | 0.7mm ETFE, 400µm GOF | Temperature Sensor | -40 to +120°C | ||||||||||
| FGA-0193A | PRB-500-2M-STM-MRI | 1.0mm Nylon, 500µm POF | Temperature Sensor | -40 to +100°C | 1 | 3 | 3 | |||||||
| PRB-500-2M-HFBR-MRI | 1.0mm Nylon, 500µm POF | 9 | ||||||||||||
| FGA-0007A | PRB-100-2M-STM-MRI | 1.5mm Nylon, 1000µm POF | Temperature Sensor | -40 to +100°C | 1 | 1 | 1 | 1 | 1 | |||||
| PRB-422-35M-STM-L | ||||||||||||||
| FGA-0152A | PRB-4x220-2M-STM-MRI-1350-C | 0.900mm Poyimide, 4x200µm GOF | Temperature Sensor | -40 to +100°C | ||||||||||
| P/N | Extension Cables | OD Material, Core Daimeter | Product Type | Temp Range | ||||||||||
| FGA-0035A | EXT-400-2M-STM-STM | 2.2mm PVC, 400µm GOF | Extension Cable | -20 to 80°C | ||||||||||
| FGA-0035A | EXT-400-12M-STM-STM | 2.2mm PVC, 400µm GOF | Extension Cable | -20 to 80°C | 1 | 1 | 3 | 8 | 1 | 1 | ||||
| FGA-0035A | EXT-400-12M-STM- HFBR | 2.2mm PVC, 400µm GOF | Extension Cable | -20 to 80°C | 10 | |||||||||
| P/N | Accessories | Description | ||||||||||||
| FGA-0015A | ACC-CON-ST-ST (Metallic) | ST Fiber Coupler Connector | ||||||||||||
| FGA-0124A | ACC-CON-STM-STM (Non-Magnetic Polymer) | ST Fiber Plastic Coupler Connector | 1 | 2 | 4 | 10 | 1 | 1 | ||||||
| FGA-0037A | ACC-CON-HFBR-HFBR, Optical Fiber Connector | HFBR Plastic Coupler Connector | 10 | |||||||||||
| FGA-0023A | ACC-CON-TBUS | DIN Rail Tbus Connector | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| FGA-0052B | ACC-USB Base Short | 5 Device Base Station | 1 | 1 | 1 | 1 | 1 | |||||||
| FGA-0052A | ACC-USB-BASE (Original) | Multi-Device Base Station | 1 | 1 | ||||||||||
| FGA-0125A | ACC-CBL-USB-1CH-DEV | 1Ch Development USB Cable | 1 | |||||||||||
| FGA-0227A | ACC-CBL-USB-2CH-DEV | 2Ch Development USB Cable | ||||||||||||
| P/N | Software | Description | ||||||||||||
| FGA-0016A | OSENSA View Basic ( Very Limited for reading) | Device Configuration Software | ||||||||||||
| FGA-0011A | OSENSA View Pro (2 User)- University | Logging, Gaphing, Calibration, 2 users | ||||||||||||
| FGA-0011C | OSENSA View Pro (5 User)- Commercial Companies | Logging, Gaphing, Calibration, 5 users | Optional | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | (optional) |
