HTX
Singe Channel Handheld Temperature Transmitter with Display
Convenient Fiber Optic Temperature Sensing

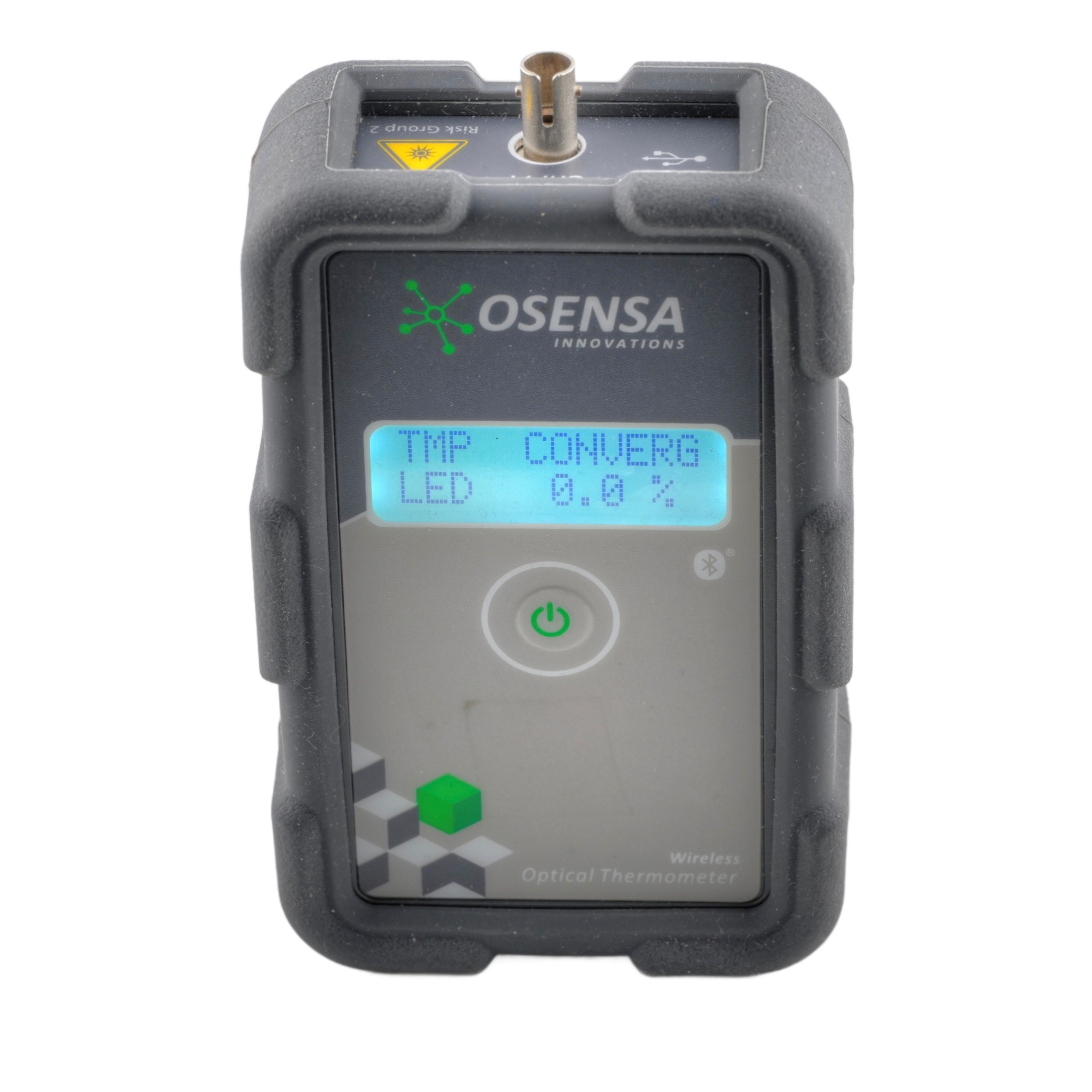

The HTX-100-MRI optical thermometer is ideally suited for research applications in life sciences and MRI applications. The HTX-100-MRI has a simple backlit LCD screen that displays temperature and optical probe health. It connects via a USB Cable to log temperature data to the USB Port on a computer.
Caution:The HTX-100-MRI device contains sensitive electronic circuitry and metallic components and should not be used in close proximity to high field strength MRI equipment. Only Osensa’s MRI style fiber optic temperature sensors and extension cables with non magnetic connectors are permitted in the high magnetic field environment.
Product Specifications
- Model Name HTX-100-MRI
- Number of Channels 1
- Probe Connection Type ST
- Digital Interface USB-mini, Wireless Bluetooth®
- Measurement Range -40°C to +200°C
- Resolution 0.01°C
- System Accuracy ±0.1°C
- Update rate 50 Hz
- Comm. Protocol Modbus RTU, Half Duplex
- Display Backlit LCD Character Display
- Operating Humidity 0 to 90% RH (Non-Condensing)
- Operating Environment 0°C to +50°C
- Dimensions 122mm Long x 76mm Wide x 36mm Depth (with silicone cover)
- Power Standard 9V Alkaline or Rechargeable
- Configuration Software OSENSAView or OSENSAView Pro
- Product Compliance RoHS CE
